Zonelite-Link is NexusHome zoning with an AirNexus Link in place of the wall screen. The Link mounts on DIN rail beside the zone module and sits on the home network, hardwired over Cat 6.
The home automation system becomes the interface on the wall. Control4, Savant, Basalte and KNX see every zone, and every phone in the house has the AirNexus app.
A zone can take its temperature from a KNX light switch with a temperature sensor, or from an AirNexus wireless room sensor.
Hardwired: Cat 6 end to end, with no Wi-Fi dependency for control, which integrators prefer
Automation drivers: Control4, Savant and Basalte drivers, plus KNX
Temperatures from anywhere: A KNX light switch with a temperature sensor, or a wireless room sensor
Up to 14 zones: On one ducted system, with the expansion module
AC control built in: The AC module clips into the zone module, with no gateway needed
The AirNexus app: On every phone in the house, alongside the automation system
The AirNexus Link runs every zone, and the automation system is the screen.

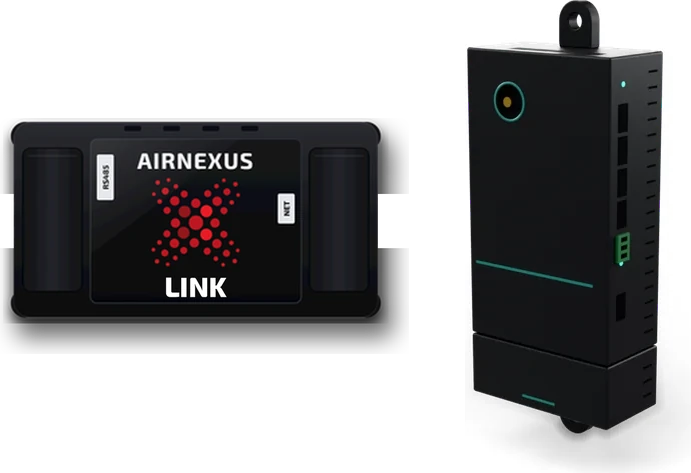

AirNexus Link: On DIN rail beside the zone module, running every zone on its own
Native drivers: Control4, Savant and Basalte see every zone with its temperature, mode, fan and setpoint, two-way and live
KNX: Read room temperatures from KNX switches and send zone states back to keypads, both ways on group addresses
| Type | Ducted zoning for automated homes |
| Brain | AirNexus Link on DIN rail |
| Zone module | NexusHome zone module, with the AC control built in |
| Zones | Up to 14 on one ducted system, with the expansion module |
| Room temperatures | KNX switches with a temperature sensor, or wireless room sensors |
| Connection | Cat 6 to the home network, all hardwired |
| Automation | Control4, Savant, Basalte and KNX, plus Matter |
| Ducted units | Major ducted brands |
| App | AirNexus app on every phone |
| Best for | Homes with Control4, KNX, Basalte or Savant |
Tell us the ducted unit, the number of zones and the automation system, and we'll come back with the parts and a quote.
