Live Diagnostics shows what each outdoor unit is reporting right now: ambient, compressor frequency, discharge, condensing and suction temperatures, high and low pressure, expansion valve position and power draw, with every indoor unit's temperature against its setpoint underneath.

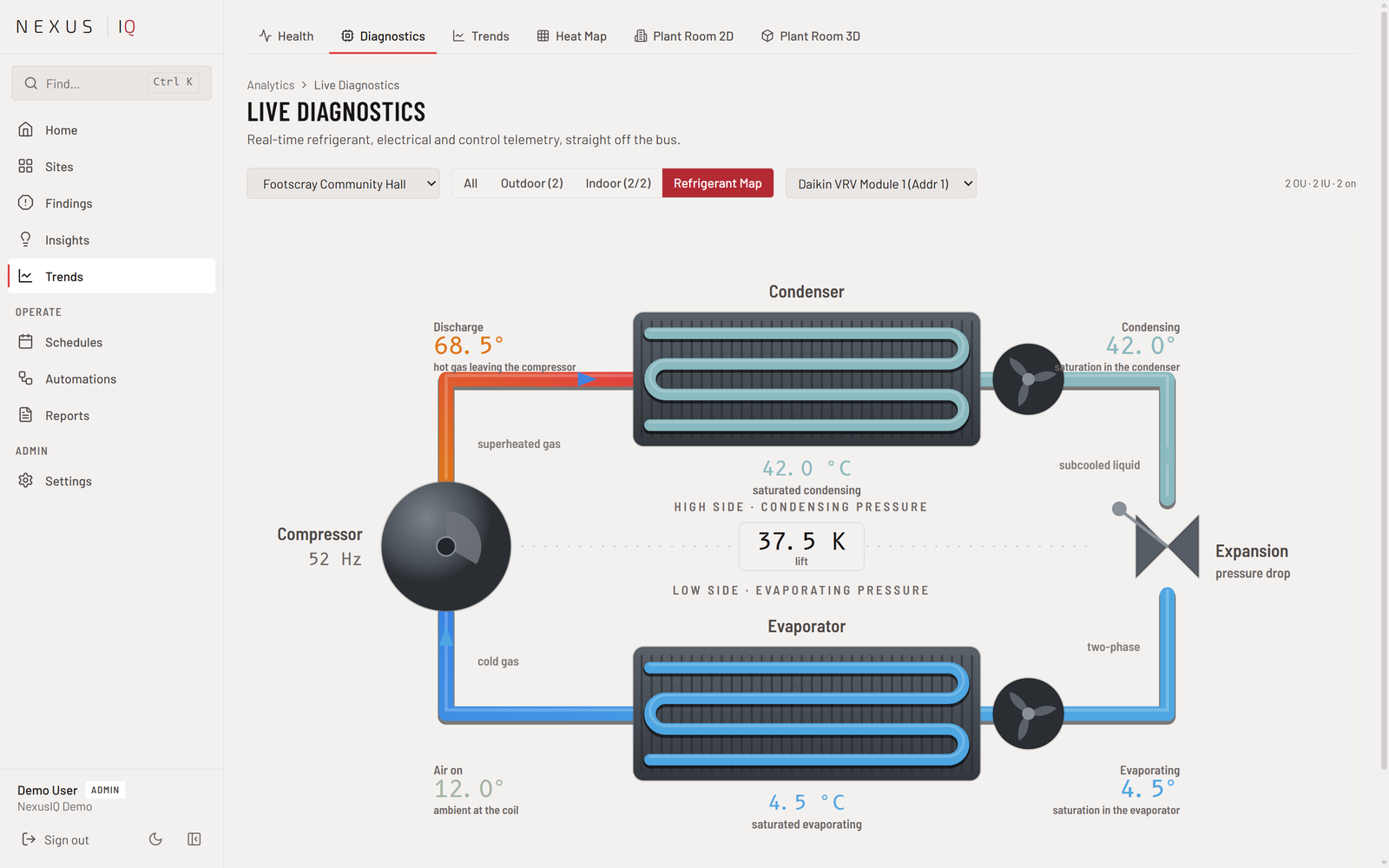

Pick an outdoor unit and Nexus iQ draws its refrigerant circuit: compressor, condenser, expansion valve and evaporator, with the live temperature at each point and the pipe colour following what it carries. Lift, discharge superheat, superheat and subcool are calculated from what the unit reports. Anything the unit does not report is left blank, not guessed.
Per-unit telemetryAmbient, Hz, discharge, condensing, suction, HP, LP, EEV and watts on one row per outdoor unit
Refrigerant MapA live circuit diagram per outdoor unit with lift, superheat and subcool
Stale flagsA reading that stopped updating is marked stale with its age, never shown as current
Indoor unitsRoom temperature against setpoint for every fan coil, with an ON-only filter
Screens show demo data in Nexus iQ.

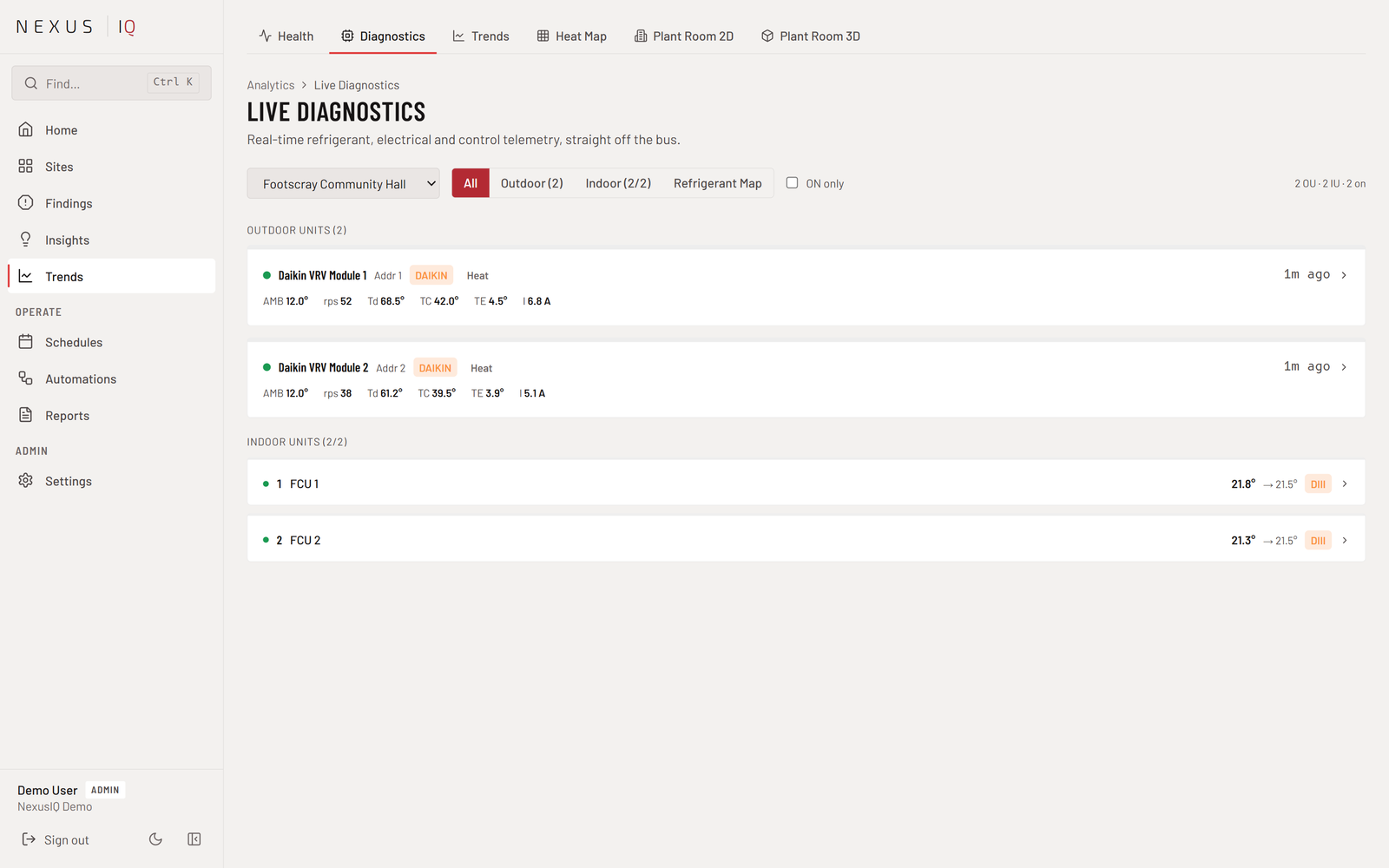

The list view is the service tool that never gets unplugged: one row per outdoor unit with the nine live readings, the brand and address, and how long ago it last reported.
All, Outdoor, IndoorThree tabs per site, plus the map
Brand awareDaikin, Mitsubishi Electric, Samsung, LG and the rest, read in their own protocol
Last seenMinutes or hours since the unit last reported, on every row
ControlFrom here to the site's Zones page in one click to change a setpoint or mode
Screens show demo data in Nexus iQ.
