WALL CONTROLLER
NexusLite
The screen is the brain. Nothing else in the cupboard.
The screen is the brain. Nothing else in the cupboard.
NexusLite is our lowest-cost way into AirNexus. The wall screen is the controller: there is no Nexus or AirNexus Link to buy or fit. It talks straight to a Universal Gateway on each air conditioner and to a Universal Expansion for plant, and puts the whole system in the AirNexus app.

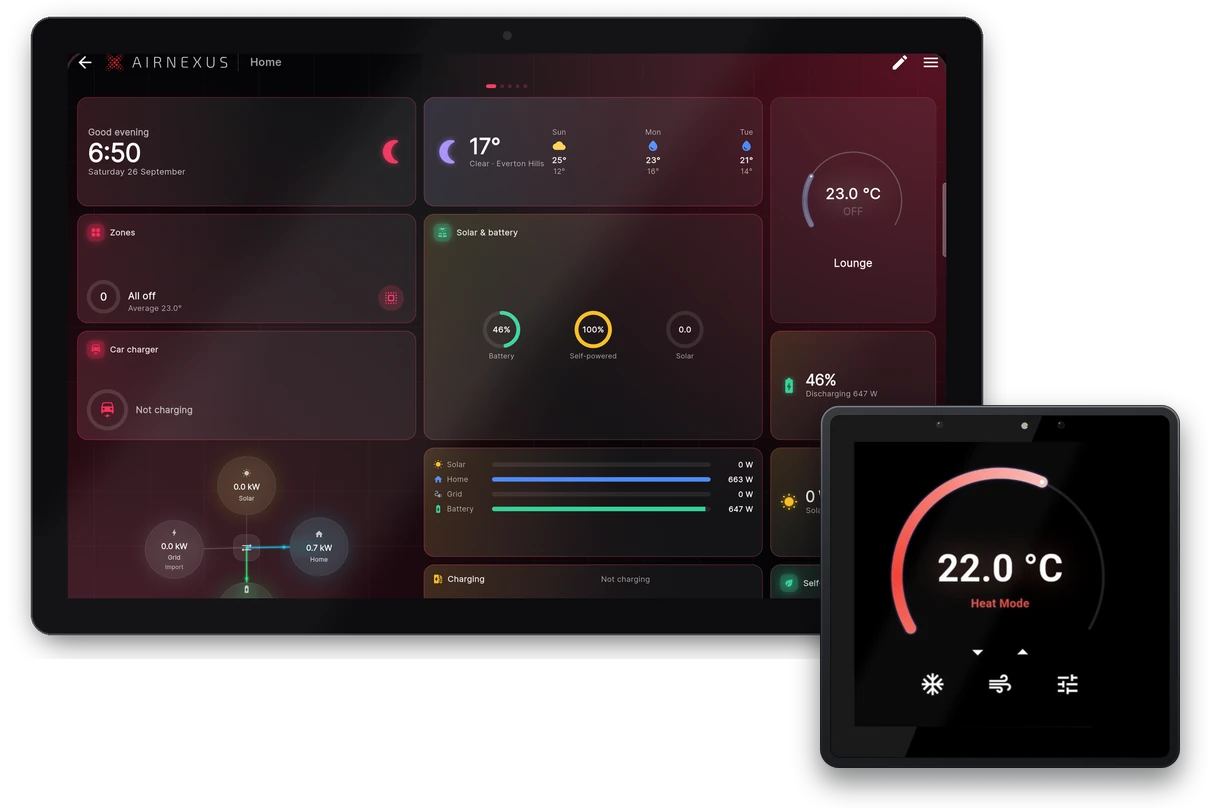

It comes in two sizes. The 4 inch is a square glass panel for a standard wall box, with the touch dial, mode and fan one tap away. The 10 inch is a 10.1 inch landscape panel that shows every unit and room on one screen, like the app.
For home automation or screens in several rooms, the same app runs on an AirNexus Link or a Nexus 8, 16 or 32, with NexusLite or Neo screens on the wall.
The screen is the controller: No separate controller to buy, so less hardware and less labour
Two sizes: A 4 inch square glass panel for a standard wall box, or a 10.1 inch landscape panel
Hardwired with PoE: One Cat 6 carries power and network
Built-in temperature sensor: The room the screen is in can be a zone
Up to 8 air conditioners: A Universal Gateway on each unit, on one 2-core control cable. 15 leading AC brands
Plant as well: Add a Universal Expansion and the same screen runs a hydronic plant
The screen runs a single 2-core control cable to a Universal Gateway on each AC unit. Add a Universal Expansion and the same screen runs a hydronic plant as well.
2 ducted systems: Upstairs and downstairs on one screen, each with its own mode and setpoint, both in the app
2 split systems: Two rooms, one wall screen. A tidy upgrade from two handheld remotes
Hydronic plus 4 units: One Universal Expansion runs the heat pump and pumps; four gateways run the indoor units
Every AirNexus system runs the same app and themes. When a home needs more, the brain moves to a separate controller.
Home automation: An AirNexus Link or a Nexus 8, 16 or 32 links to Control4, KNX, Basalte, BMS and more
Screens in any room: With a separate controller, add NexusLite or Neo screens wherever you want one
Bigger systems: A Nexus 8, 16 or 32 runs VRF, mixed brands and hydronic plant, with no gateways needed
| Type | Wall screen with the controller built in |
| Sizes | 4 inch square glass panel for a standard wall box; 10.1 inch landscape panel |
| Power and network | PoE over one Cat 6, hardwired |
| Temperature sensor | Built in |
| Air conditioners | Up to 8, with a Universal Gateway on each unit |
| Control cable | One 2-core cable from the screen to the gateways |
| Plant | Universal Expansion for hydronic heat pumps, pumps and valves |
| App | AirNexus app, with the same themes as every AirNexus system |
| Best for | Small homes, granny flats, 1 to 2 units |
Tell us the air conditioner brand and how many units, and we'll come back with the parts and a quote.
